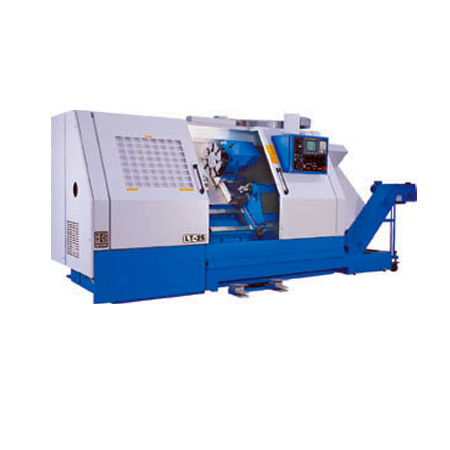

The Largest Machine in the "ACE"
product line of Universal slant bed turning centers, this machine
can accommodate large work pieces. A rigid structure, Precision
cartridge spindle, Hardened and ground box ways with anti-slipstick
liners on mating surfaces, ensures years of accurate trouble free
performance.
Complete Fanuc package of CNC system, digital spindle and axes
drives, with Fanuc motors ensure reliability.
- High-speed bi-directional tool turret, with 8 or 12 tools.
- Overload tripping clutches on X and Z axis.
- Automatic centralized lubrication.
- Programmable tail stock, as a standard feature.
- Built in lighting and coolant system
- A package of OD turning tool blocks, boring bar
holders,sleeves and facing tool holder.
| Maximum turning diameter |
16.53" (420mm) |
| Maximum turning length |
41.34" (1050mm) |
| Chuck Size |
12" (315mm) |
| Spindle Power (30 minutes) |
30 HP (22 kW) |
| Rapid Rate: X-axis |
590.6"/min (15m/min) |
| Rapid Rate: Z-axis |
590.6"/min (15m/min) |
